RAVEN-EDGE16NVR

16-ch NDAA Compliant Network Video Recorder

Contact Sales

Overview

16 Channel NVR – Network Video recorder with HDMI and VGA Simultaneous Output. Supports Cloud Storage and Up to 4K Recording.

Key Features Specifications Resources & Downloads

Key Features

Support Ultra 265/H.265/H.264 Video Formats
16-channel Input
Plug & Play with 16 Independent PoE Network Interfaces
Third-party IP Cameras Supported with ONVIF Conformance: Profile S, Profile G, Profile T
Support HDMI and VGA Simultaneous Output
Up to 8MP Resolution Recording
2 SATA HDDs, up to 10TB for Each HDD (Varies with environment temperature)
ANR Technology to Enhance the Storage Reliability When the Network is Disconnected
Support Chrome/Edge/Firefox/IE Web Browser
Support Cloud Upgrade

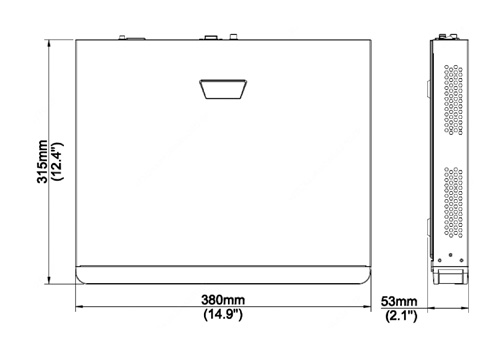

Dimensions

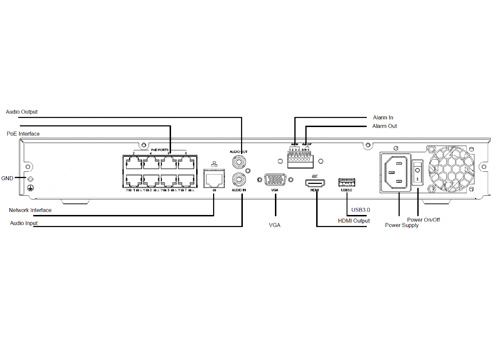

Back View

Specifications

IP Video Input

16-ch

Two-way Audio Input

1-ch, RCA

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Web Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

HDMI/VGA Output

HDMI:
4K (3840×2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA:
1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30

SATA

2 SATA interfaces

Capacity

Up to 10TB for each disk (The maximum HDD capacity varies with environment temperature)

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0

Alarm In

4-ch

Alarm Out

1-ch

Web Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Interface

16 independent 100Mbps PoE network interfaces

Max Power

Max 30W for single port
Max 240W in total

Supported Standard

IEEE 802.3af/at

Power Supply

100 ~ 240V AC
Power Consumption: ≤10W(without HDD)

Working Environment -

+14°F~+131°F (-10°C~+ 55°C), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

380mm x 315mm x 53mm (14.9″ x 12.4″ x 2.1″)

Weight (without HDD)

≤5.29lb (2.6kg)

Resources & Downloads

Full Data Sheet Get Support
